Times7 SlimLine A5010 Circular Polarized Antenna

EasyLogic

€126.00 excl. BTW
€152.46 incl. VAT


Share:



The Times-7 industry leading ultra-low profile design is now available in a compact 250mm / 10 inch square footprint. IP67 rated for permanent outdoor use and built to Times-7’s high standard for quality and robustness, the circularly polarized A5010 creates a new benchmark for multi-purpose UHF RFID antennas.



Mounting Information

The 5010 is designed to support either flush or VESA mount. To accommodate both approaches, versions with either flush or studded backplates are supported.

Flush mounting can be accommodated by attaching screws or bolts through the corner holes in the housing. A set if screws is supplied with each antenna.

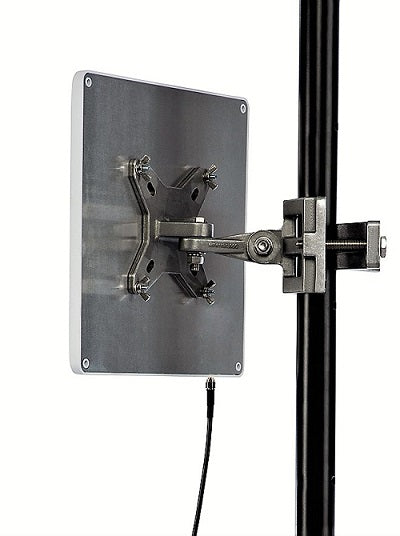

The stud mounting support standard VESA brackets (100mm spacing) as shown in the picture available from a wide range of suppliers.

Applications

  • High performance RFID applications
  • Space constrained or customer facing environments
  • IP67 rugged design suitable for indoor or outdoor use



A5010 TECHNICAL SPECIFICATIONS

Dimensions

250 x 250 x 14 mm

Frequency Range

865-867MHz (ETSI)

Connector Type

SMA female

Antenna Gain

8.5 dBi Circular

Download Datasheet

A5010 Circular Polarized Antenna datasheet (PDF)



Contact us for suitable antenna cables, fitting to your RFID reader connection.

sku: A5020-stud
